BD406 | PBD406

(Remote) Emergency Beacon Locator

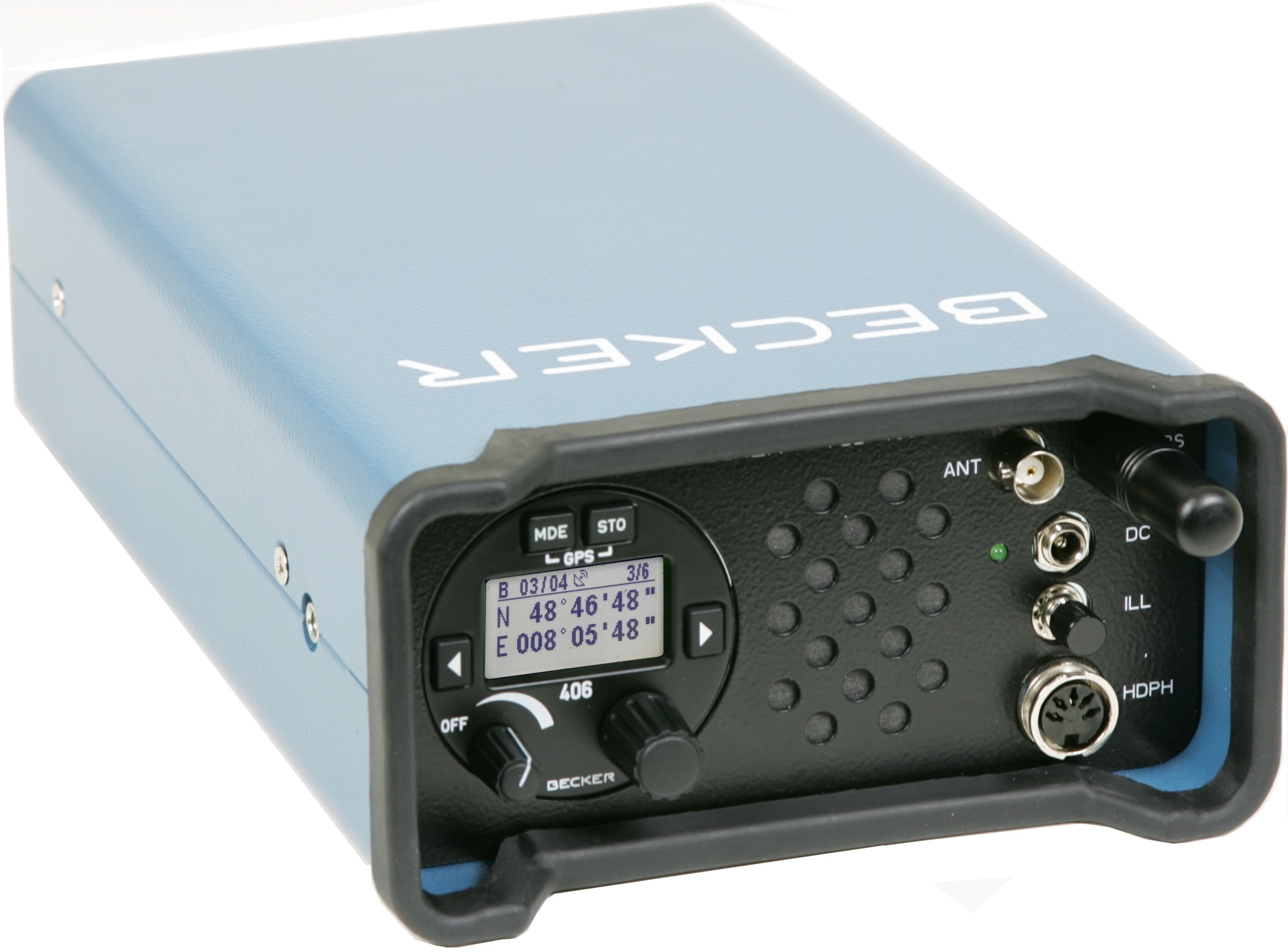

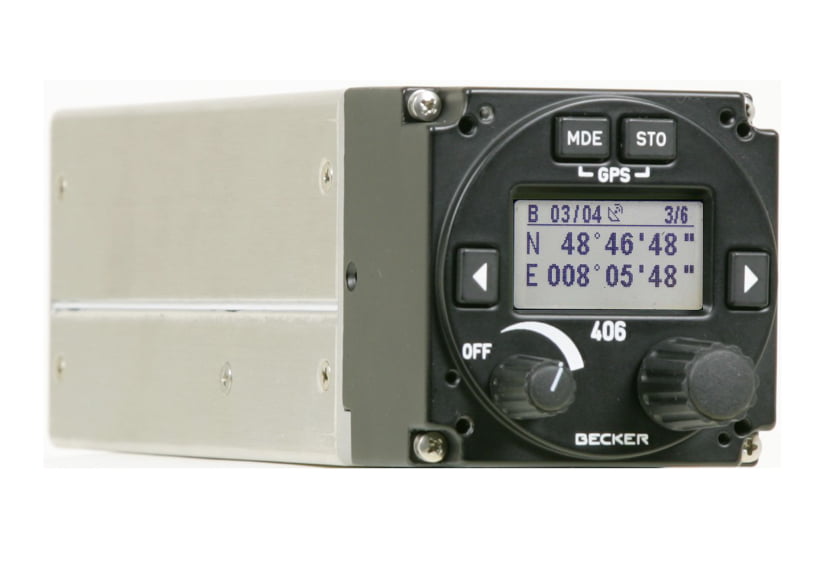

The BD406 & PBD406 Emergency Beacon Locator is a high-performance signal decoder designed for precise GPS-based distress signal detection. Available in panel mount (2 ¼ inch) or portable versions, it provides direct navigation to distress beacons, even in adverse conditions. Ideal for rescue crews, airport services, and SAR monitoring, with a wide range of accessories for flexible use.

Interested in this Product?

Contact us for more information

High perfomance emergency signal decoder, providing rescue crews and first responders with highly accurate GPS position information of aircraft in distress. Available in panel mount or portable versions.

Your Benefits

  • Direct navigation mode toward the position of the distress beacon
  • Complimentary solution to existing homing systems without 406 MHz detection capability
  • Portable or panel mount 2 ¼ inch design
  • Highly sensitive decoder to receive distress signals over long distances and in adverse conditions
  • Displays the exact position and identity of the beacon
  • Optional for use as a SAR monitoring system for airport services

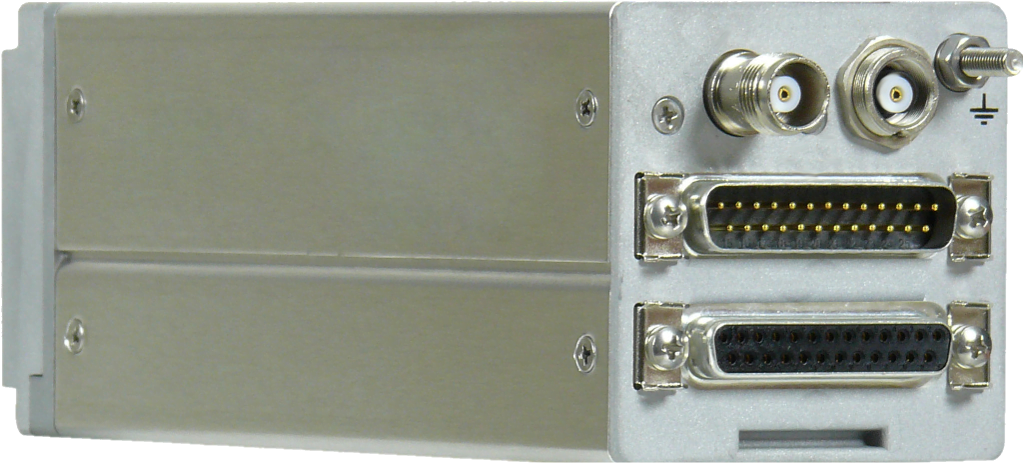

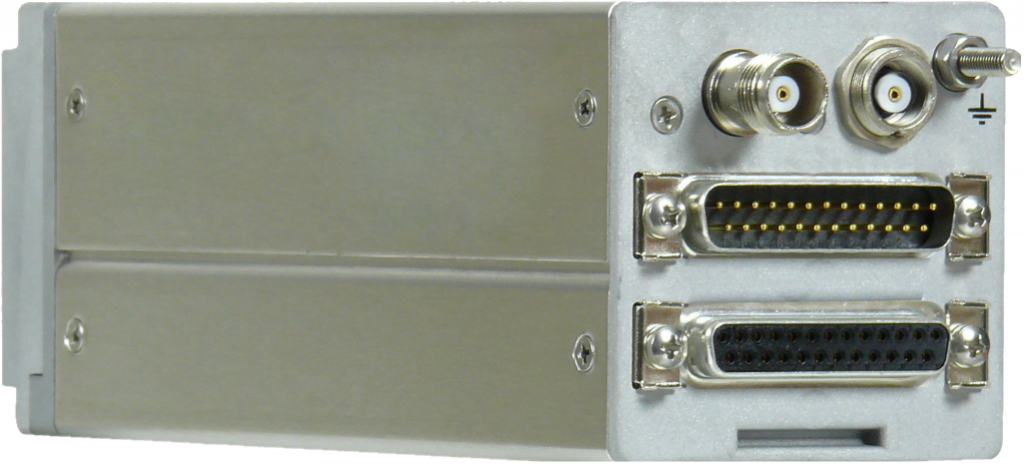

  • Available as remote device without control head
  • wide range of accessories: antennas, carry equipment e.g. for car mounting
BD406 / PBD406 Specifications
Nominal Voltage BD406: 9…32 VDC
PBD406: 9…36 VDC (nominal external supply voltage), 12 VDC (battery voltage – nominal)
Dimming Control 14 VDC or 28 VDC
Frequency Range 406.020…406.081 MHz
Temperature Compensated VCO Long-Term Stability ≤ ±5 ppm after 10 years
Operating Temperature (as per RTCA DO-160E) BD406 with control head: -15…+55 °C (short-time -40…+70 °C)
PBD406: -15…+50 °C
Operating Altitude (as per RTCA DO-160E) BD406: 15,000 ft
PBD406: n/a
Vibration (as per RTCA DO-160E) BD406: Fixed wing Category S (Curve M)
PBD406: Rotary wing Category U (Curve G)
Receiver Data COSPAS/SARSAT analysis: Reception, analysis, correction of COSPAS/SARSAT data signal
Modulation (data encoding): Biphase L-phase +1.1 / -1.1 rad
Bit rate: 400 bps ±1%
Digital messages: Short Message 112 bit, Long Message 144 bit
Sensitivity: -104…0 dBm @ 50 Ω
Dynamic range: -104…0 dBm
Nominal impedance of antenna input: 50 Ω
Absolute max. input power at antenna input: +30 dBm
Display Graphic 128×64 dots – LCD, white or NVG compatible backlight
Interfaces RS232, RS422, ARINC 429
Weight BD406 with control head: ≤700 g (1.54 lb)
PBD406: ≤3700 g (8.16 lb)
