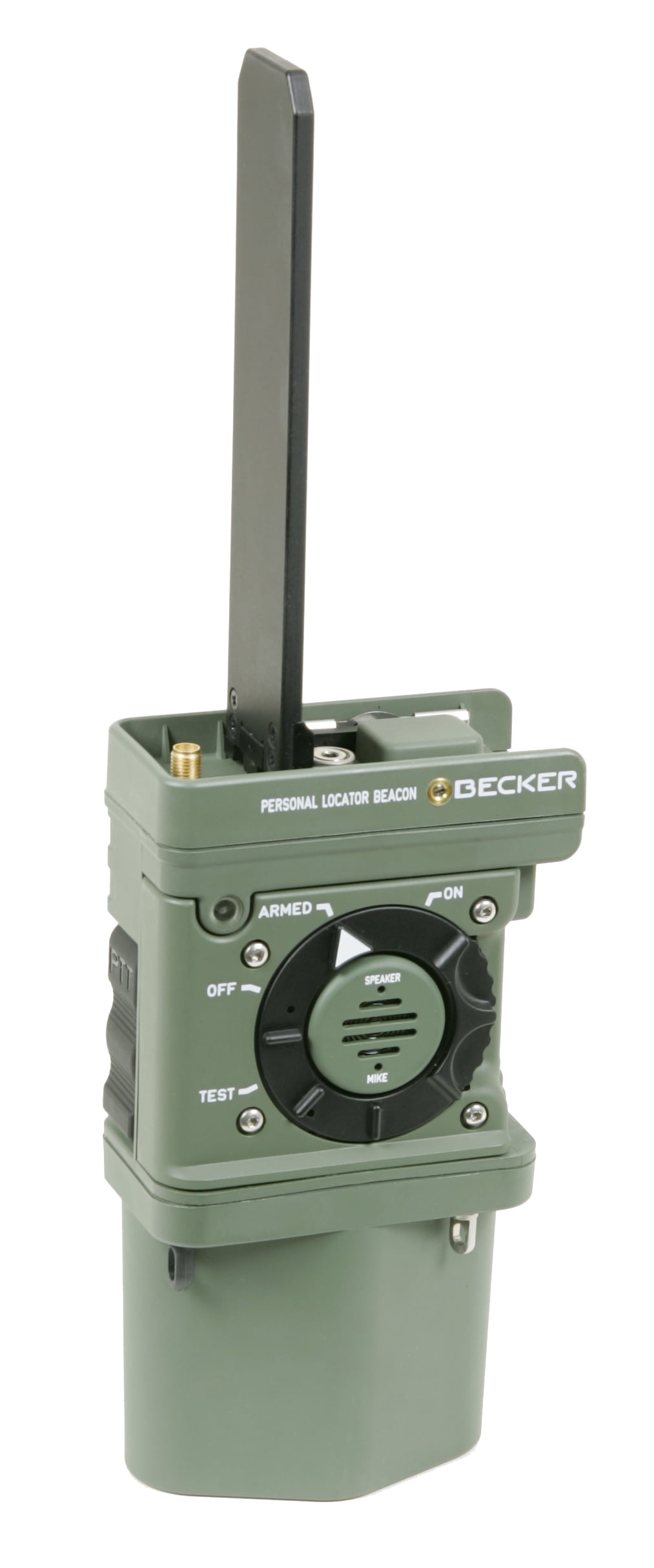

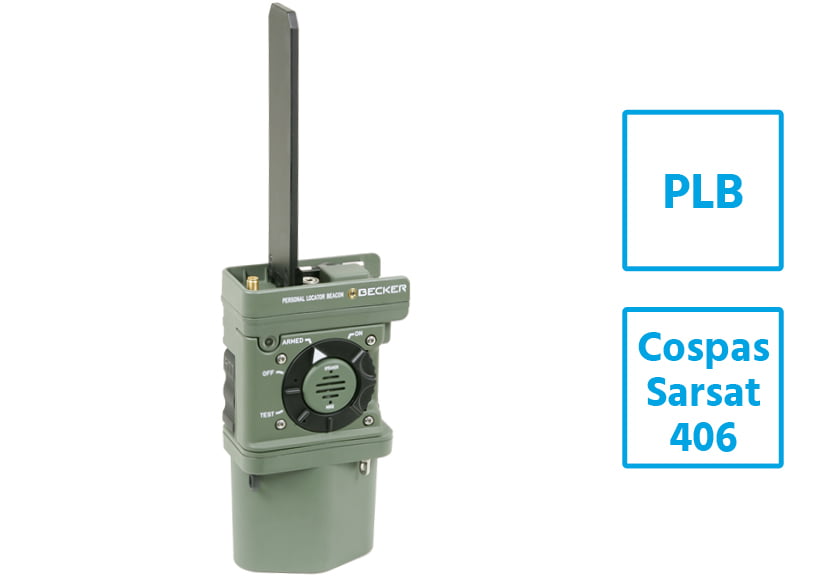

MR510

Personal Locator Beacon

The MR510 Personal Locator Beacon is a military-grade COSPAS-SARSAT certified PLB designed for civil and military aircrews, naval, and ground personnel. Featuring multi-band emergency frequencies (121.5 MHz, 243.0 MHz, 406 MHz), GNSS (GPS/Galileo/GLONASS), and rugged construction, it ensures reliable performance in extreme conditions. Compact, lightweight, and self-contained, the MR510 supports manual or automatic activation and is compatible with life vests and ejection seats.

Interested in this Product?

Contact us for more information

  • Fully self-contained (transceiver, V/UHF/C-S antennas, with latest generation 72 channels GNSS (GPS/Galileo, GLONASS)
  • Compact, lightweight, state-of-the-art technology
  • Manual or automatic activation by lanyard or water immersion
  • Life vest and ejection seat capability

First-class military grade distress beacons, designed to sustain the harshest mission profiles. State-of-the-art satellite technology, simplicity of operation and outstanding reliability records are our guarantee for durable performance, to help saving the lives of those who protect us.

Becker Avionics offers since 1970 the best in SAR technology and has delivered more than 30 000 beacons.
The new generation of Becker´s MR510 PLBs offers military-grade performance, with advanced features including GPS technology, which make it easier and quicker for COSPAS-SARSAT satellites to pick up distress signals and relay an accurate location to rescuers.
Pinpointing the location of the person in distress will quickly help search and rescue agencies to better locate individuals and save lives.
The MR510 is the most advanced COSPAS-SARSAT certified handheld PLB available today. It is a rugged, multipurpose survival radio and locator device designed for civil and military aircrews, naval and ground personnel.
Transmissions from the MR510 are omnidirectional and continuous for at least 24 hours at extreme temperatures
(-40 °C) to help facilitate detection by satellites, aircraft or vessels, or by any other land, sea or airborne installation monitoring these frequencies.

Features

  • COSPAS-SARSAT certification
  • Designed for all airborne, land and marine applications
  • Multi emergency band – 121.5 MHz, 243.0 MHz and 406 MHz
  • Two-way VHF or UHF voice communication (programmable)
  • Fully self-contained (transceiver, V/UHF/C-S antennas, with latest generation 72 channels GNSS (GPS/Galileo, GLONASS)
  • Compact lightweight, with State-of-the-Art technology
  • Manual or automatic activation by lanyard or water immersion
  • Life vest and ejection seat capability
  • Initiated Built-In-Test feature
  • Compliance with: Stanag 7007 P 1 PSAR, MIL-STD 810F, ED-14E (DO-160E)
Category Specification
Operating Frequencies F1 (VHF): 121.500 MHz ± 1.5 MHz
F2 (UHF): 243.000 MHz ± 3 MHz
F3 (UHF): 406.037 MHz
Others on request
Modulation Beacon and voice mode: AM (121.5 MHz; 243.0 MHz)
COSPAS-SARSAT: C/S Specification T.001
Antenna Tri-frequency built-in antenna and connector for external antenna
Operating Temperature -40…+55 °C, Class 1
-20…+55 °C, Class 2
Battery Lithium type (LiSO2), lifetime ≥ 5 years
BITE Self test with acoustic and optical indication for GO / NO GO
Transmitter Output Power:
VHF 100 mW
UHF 100 mW
C/S 5 W
Voice Mode F1/F2: VHF/UHF 50 mW
Modulation Beacon Mode: A2X not less than 60%, audio frequency swept at 2 to 3 sweeps per second
Voice Mode: A3E AM 80%
COSPAS-SARSAT: Messages C/S T.001
VHF/UHF Receiver F1/F2 Sensitivity: -87 dBm, for 6 dB [S+N]/N, m=30%, 1 kHz
Audio Output: ≥ 100 mW, 90% modulation at 1000 Hz
GNSS Receiver 72 channel, GPS L1C/A, GLONASS L1OF, Galileo E1-B/C, SBAS L1C/A
Design Standards STANAG 7007
C/S T.001, C/S T.007, C/S T.012
MIL-STD-810F
ED 14E/DO-160E, ED 128/DO-178B
RoHS-Directive
WEEE-Directive
Dimensions (HxWxD) 162.15 x 90 x 46.6 mm (antenna folded, storage position)
Weight Less than 650 g with battery
